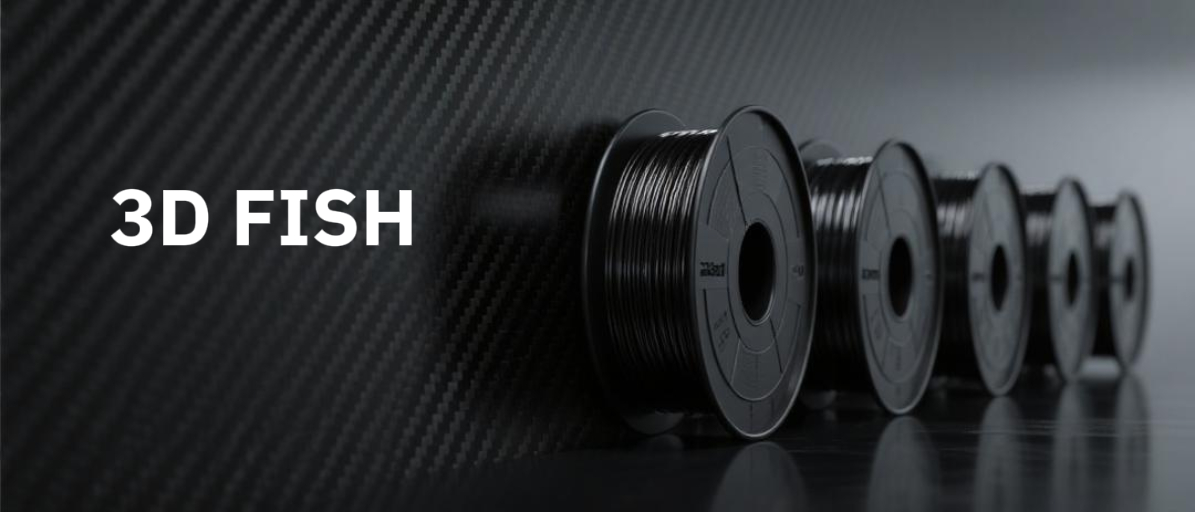

3D-PA Carbon Fiber

PA Carbon Fiber is achieved by combining special nylon matrix with high content of carbon fiber to produce advanced materials with aerospace grade performance.
The PA carbon fiber printing consumables for 3D FISH are created by combining a specialty nylon matrix with a high content of carbon fibers to create an advanced material with aerospace-grade performance:
Technology and innovation
Combined with short cut carbon fiber, multi-level reinforcement is achieved, providing unmatched performance for both high-performance mechanical components and functional components in harsh environments.
Industrial-grade performance
While maintaining the excellent toughness of nylon, this material is enhanced by innovative carbon fiber reinforcement technology to increase rigidity by 80% and heat deflection temperature by 50%, making it particularly suitable for high-end engineering applications that require extreme strength-to-weight ratio and dimensional stability.
Stable reliability
The industry leader in diameter fluctuation stability, fully automated clean room production facilities and strict online monitoring systems ensure a high degree of consistency in the wire material.
Ease of use and compatibility
Suitable for most industrial FDM printers, optimized printing parameters can be adapted to high speed and wide range of printing parameters.
application scenarios
Suitable for aerodynamic components, precision instruments, zero expansion measurement equipment bracket, energy equipment, lightweight components of wind turbines, military equipment and individual equipment high strength components.
Specifications parameters

Method of measurement

standard

characteristic

callipers

1.75±0.02mm

Wire diameter

callipers

≤ 0.02mm

roundness

electronic balance

1 ± 0.01KG/roll

weight

automatic measurer

1.75 ± 0.02mm

Diameter consistency

Surface

Method of measurement

standard

characteristic

Visual plus touch

Smooth, rounded, uniform thickness

surface

Visual plus touch

No bubbles, bulges, spots, etc

details

Visual additive color charts

The color is uniform with the swatch

pigment

visual

Neat and unblocked

rolling

Physical property

Method of measurement

standard

characteristic

density

1.24(g/cm³)

standard

distortion temperature

110℃

standard

melt index

6g/10min

standard

Vika softening temperature

165℃

standard

Mechanical behavior

Method of measurement

standard

characteristic

tensile strength

120MPa

standard

elongation at break

3%

standard

bending strength

150MPa

standard

flexural modulus

6500MPa

standard

Cantilever beam notch impact

25J/M

standard


×
