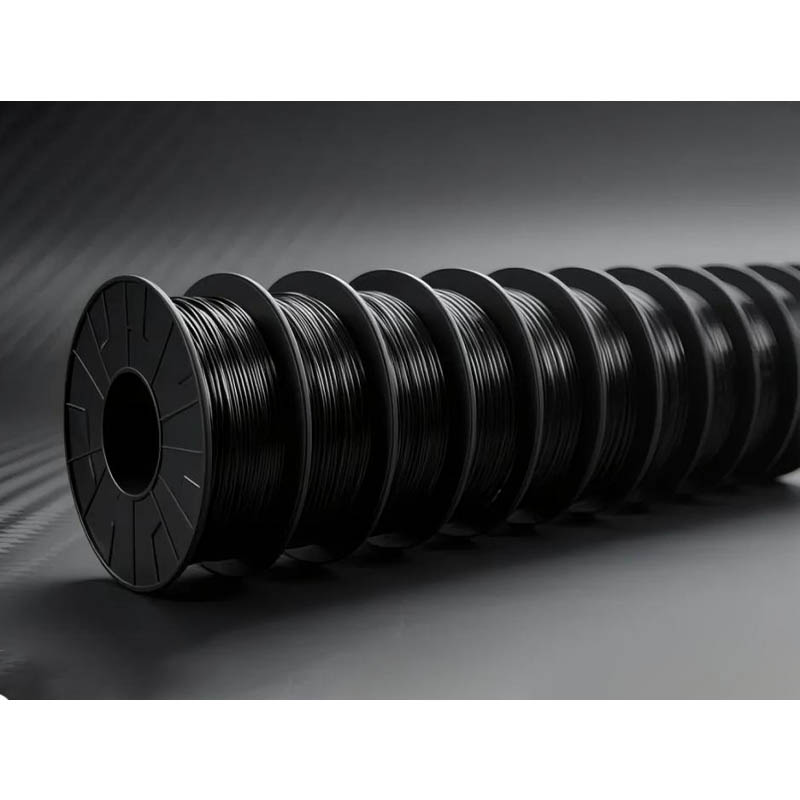

3D-ASA Carbon Fiber

 ASA Carbon Fiber,A high-performance material created by combining the excellent weather resistance of ASA resin with the reinforcement performance of carbon fiber.
The ASA carbon fiber printing consumables for 3D FISH combine the excellent weather resistance of ASA resin with the enhanced properties of carbon fiber to create a high-performance material with excellent mechanical properties and dimensional stability:
Technology and innovation
The special coupling agent formula greatly improves the interfacial bonding strength between carbon fiber and ASA matrix, and simultaneously enhances the resistance of the material to UV radiation and wet heat environment.
Industrial-grade performance
While maintaining ASAs original weather resistance, carbon fiber reinforcement increases rigidity by 60% and heat deflection temperature by 20%, providing a full range of performance guarantees for your outdoor engineering applications.
Stable reliability
The optimized fiber content and length distribution ensure continuous and stable printing, and the diameter tolerance is strictly controlled. Each roll of material is tested for mechanical properties, fiber content and diameter accuracy.
Ease of use and compatibility
Suitable for most industrial-grade FDM printers, optimized printing parameters can be adapted to high speed and wide range of printing parameters.
application scenarios
Suitable for outdoor sports equipment, ski board fasteners, bicycle parts, industrial equipment, vibration equipment protection cover, building auxiliary materials, high toughness door and window seals, etc.
Specifications parameters

Method of measurement

standard

characteristic

callipers

1.75±0.02mm

Wire diameter

callipers

≤ 0.02mm

roundness

electronic balance

1 ± 0.01KG/roll

weight

automatic measurer

1.75 ± 0.02mm

Diameter consistency

Surface

Method of measurement

standard

characteristic

Visual plus touch

Smooth, rounded, uniform thickness

surface

Visual plus touch

No bubbles, bulges, spots, etc

details

Visual additive color charts

The color is uniform with the color chart

pigment

visual

Neat and unblocked

rolling

Physical property

Method of measurement

standard

characteristic

density

1.22(g/cm³)

standard

distortion temperature

105℃

standard

melt index

3g/10min

standard

Vika softening temperature

110℃

standard

Mechanical behavior

Method of measurement

standard

characteristic

tensile strength

70MPa

standard

elongation at break

2.5%

standard

bending strength

100MPa

standard

flexural modulus

5800MPa

standard

Cantilever beam notch impact

15J/M

standard

×
