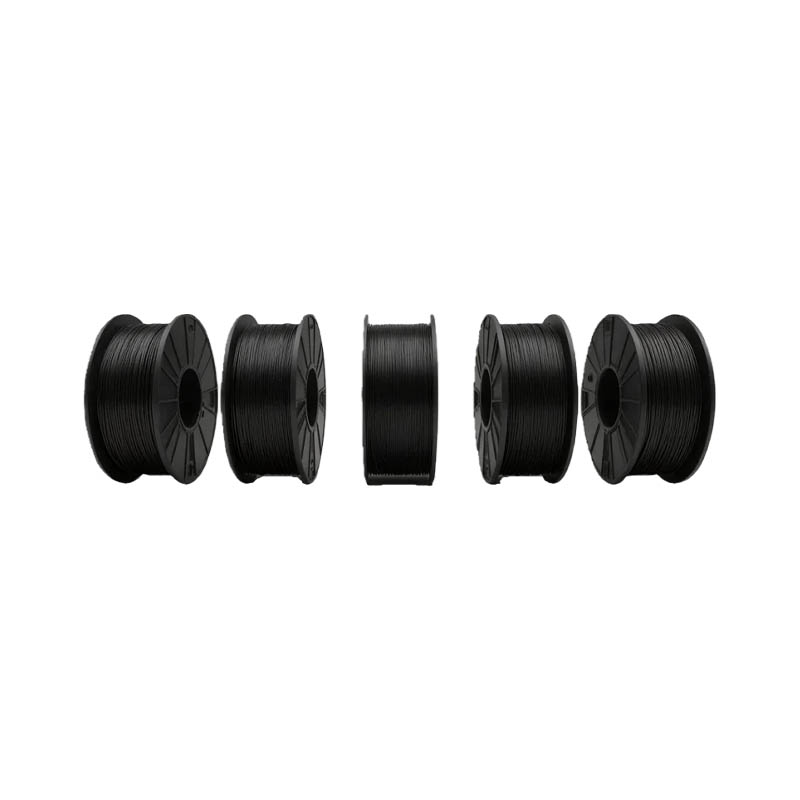

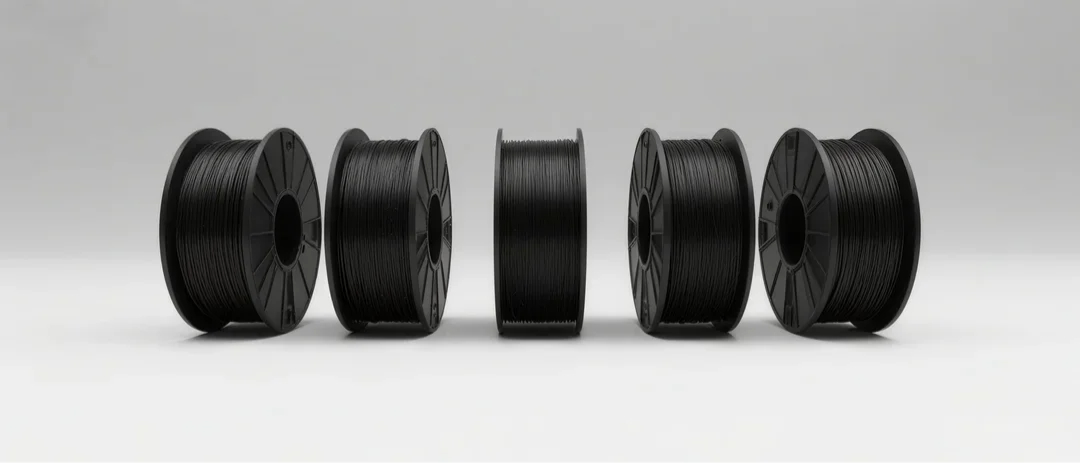

3D-ABS + Flame Retardant

ABS + Flame Retardant Being able to maintain structural stability at high temperatures, providing reliable safety guarantees for your design and production.
The ABS flame retardant printing material for 3D FISH is a high-performance material developed for safety-sensitive applications. It maintains structural stability at high temperatures and effectively suppresses flame spread in case of fire, providing reliable safety for your design and production:
Technology and innovation
Using halogen-free environmentally friendly flame retardant, the nanoscale dispersion technology is adopted to ensure uniform and stable flame retardant performance, and at the same time, it has gas phase and condensed phase flame retardant effect, so as to achieve more efficient fire protection.
Industrial-grade performance
Through strict flame retardant test, it will self-extinguish for a short time after flame, which ensures the flame retardancy while maximizing the mechanical strength and processing performance of ABS.
Stable reliability
Each roll of material is validated for flame retardancy and mechanical properties, optimized rheological characteristics ensure continuous and stable extrusion, and automated production lines are used to ensure consistent performance between batches.
Ease of use and compatibility
Compatible with most FDM printers, including Ultimaker, Prusa, etc., with convenient slicing Settings and preset configuration files for mainstream slicing software.
application scenarios
Suitable for electronics and electrical, switch housing, junction box, electrical control box, industrial equipment, control cabinet components, motor protective cover, public facilities, emergency equipment housing, safety sign plates, etc.
Specifications parameters

Method of measurement

standard

characteristic

callipers

1.75±0.02mm

Wire diameter

callipers

≤ 0.02mm

roundness

electronic balance

1 ± 0.01KG/roll

weight

automatic measurer

1.75 ± 0.02mm

Diameter consistency

Surface

Method of measurement

standard

characteristic

Visual plus touch

Smooth, rounded, uniform thickness

surface

Visual plus touch

No bubbles, bulges, spots, etc

details

Visual additive color charts

The color is uniform with the color chart

pigment

visual

Neat and unblocked

rolling

Physical property

Method of measurement

standard

characteristic

density

1.12(g/cm³)

standard

distortion temperature

88℃

standard

melt index

6g/10min

standard

Vicat softening temperature

92℃

standard

Mechanical behavior

Method of measurement

standard

characteristic

tensile strength

38MPa

standard

elongation at break

8%

standard

bending strength

58MPa

standard

flexural modulus

2300MPa

standard

Cantilever beam notch impact

12J/M

standard

×
